AdBlue/DEF

Blue-Kits · 3,000 and 5,000 litres

Tank + accessories

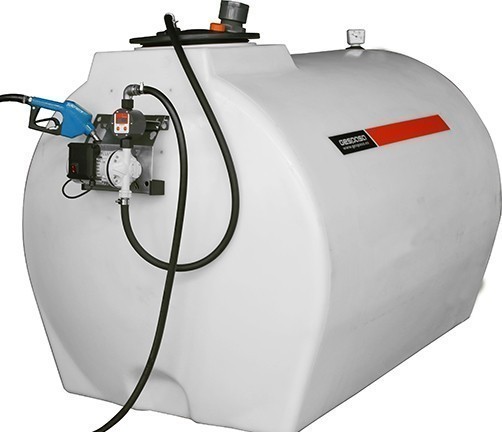

3,000-LITRE HORIZONTAL BLUE-KIT

808401021

5,000-LITRE HORIZONTAL BLUE-KIT

808401022

Complete Kits to store and supply AdBlue/DEF.

TANK

Tank of 3,000 or 5,000 litres made of high density polythene and high molecular weight. These tanks are moulded in one piece; they are perfectly watertight without glues or weldings;
Special thickness for thermal isolation;
High strong and excellent collision resistance;
Its inner surface is smooth, avoids the pores and makes easier its cleaning;
Translucent wall (according to the model) that allows to see the content level;
The maximum liquid density that these tanks can have is 1.3 kg/m³;
It is included the wood pallet for its transport and stable base.

Metallic support for the supply kit;
Metallic inserts to be fixed to support sheet directly to the tank

INCLUDED ACCESSORIES

Suction tube;
Level clock;
2" charging hole;
Manhole;
Air intake

OPTIONAL:

The kit can be supplied with any type of the supply kit available for AdBlue/DEF.

Size and weight (approx.):

BLUE-KIT of 3,000 litres

Dim.: 2,100x1,470x1,500 mm (length x width x height)
Weight: 230 kg

BLUE-KIT of 5,000 litres

Dim.: 2,200x1,860x1,900 mm (length x width x height)
Weight: 375 kg
